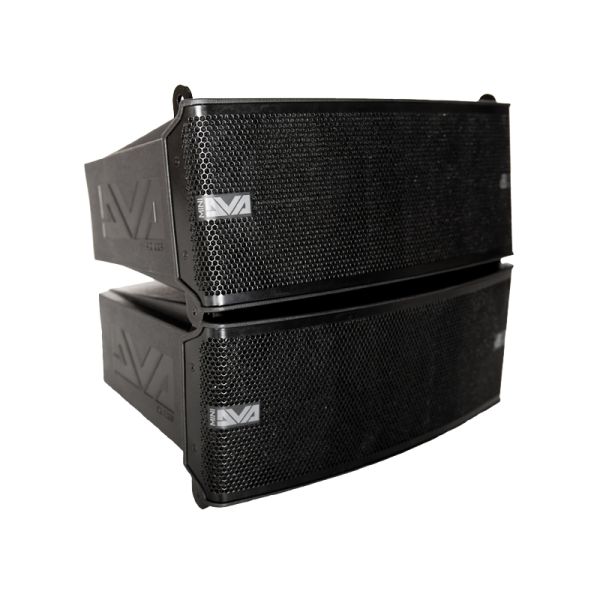

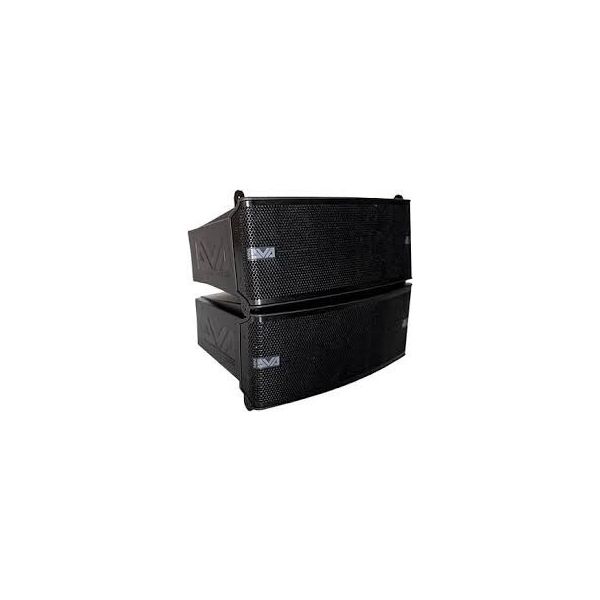

Remember the DVA T8 launch? As hard as it was to believe, all that power and performance came packed in an incredibly compact, lightweight speaker. Now the DVA MINI is about to set a new standard (again).
Offering the same hallmark user-friendliness and sound quality of its DVA predecessors, the MINI series sets the new benchmark for easy-to-use systems with top-range sound performance.
The innovative Master + Slave design makes for simplified system wiring and less total weight, making this series equally ideal for permanent installation in theatres, places of worship, convention centres, and for concert tours and live music performances.
DATI TECNICI
Speaker Type M2M: 2-Way Active Master Line Array Module
Speaker Type M2S: 2-Way Slave Line Array Module
DATI ACUSTICI
Frequency Response [-6dB]: 78 - 19.000 Hz
Frequency Response [-10dB]: 68 - 20.000 Hz
Max SPL: 126 dB per unit
HF: 2x1"
Type HF: Neodymium
Voice Coil HF: 1"
LF: 2x6.5"
Type LF: Neodymium
Voice Coil LF: 1.5"
Directivity: 90x15°
AMPLIFICATORE
Amp Technology: Digipro® G3
Amp Class: Class D
RMS Power HF Amp: 200 W (100 W + 100 W)
RMS Power LF Amp: 200 W (100 W + 100 W)
Cooling: Convection
PROCESSORE
Controller: DSP 56 bit
AD/DA Converter: 24 bit/48 kHz
System Presets: 9 presets (8x HF and Low-Mid corrections and 1x for service use)
Limiter: Multiband, RMS/Peak, Thermal
Crossover Frequency MF-HF: 1800 Hz
Slope LF-HF: 24 dB/Octave
INPUT SECTION
Signal input: 1x XLR fem, Bal.
Signal Output: 1x XLR male, Bal.
Power Supply: 400W SMPS with PSU Auto-range (110V~ and 220V~)
Power Socket: 1x PowerCon In 1x PowerCon Out
Signal input M2S: 1 Custom connector
MECCANICA
Housing: Polypropylen PP
Handles: 2x back side
Fittings: Integrated hardware with fast lock mechanics
