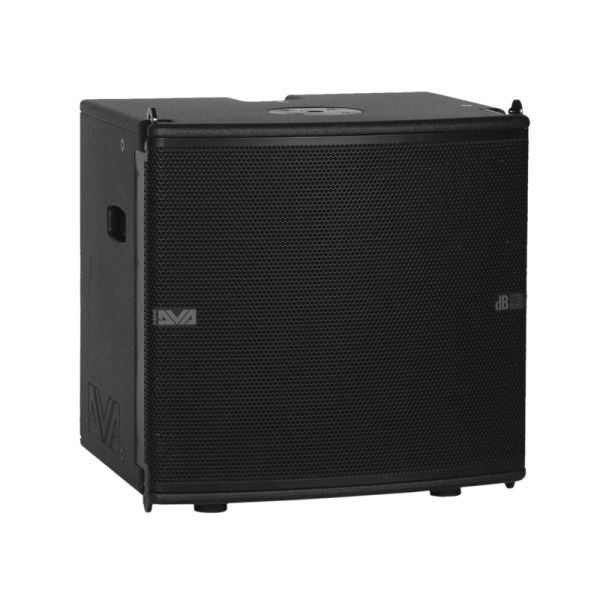

DVA MS12 is the flyable subwoofer which comes with the DVA Mini series.
Especially designed to fit perfectly with an M2M and M2S array, the MS12 is equipped with a single 12" woofer in a bass reflex enclosure, acting as a perfect low-end extension module for DVA Mini systems.
TECHNICAL DATA
Speaker Type: Active bass reflex flyable subwoofer
ACOUSTICAL DATA
Frequency Response [-6dB]: 45 - 140 Hz
Frequency Response [-10dB]: 40 - 165 Hz
Max SPL: 131 dB
LF: 12"
Voice Coil LF: 3"
Directivity: Omnidirectional
AMPLIFIER
Amp Technology: Digipro® G3
Amp Class: Class D
Power Supply: 700W SMPS with PSU Auto-range (110V~ and 220V~)
LF Amp: 700 W RMS (1400 W Peak)
Cooling: Convection
PROCESSOR
Controller: DSP 56 bit
AD/DA Converter: 24 bit/48 kHz
Controls: X-Over frequency selection, Phase selection (0° or 180°), Outputs mode selection (Link/X-over), Mini-USB type “B” port (service data)
PROCESSOR
